Lars Schumann - Make - Weather Station

An early prototype -- before the versioned sensor-node lineage really begins: this one never left the breadboard or got a real network, database, or unattended deployment. That lineage starts with ZigBee Sensor Network (v1.0), succeeded by ESP32 Sensor Node (v2.0).

The goal of this project is to log some weather data and be able to access it from anywhere. There is some sensor data (temperature, relative humidity, pressure, and ambient light) and some computed data (dew point). This first version needed a laptop in the room -- an Arduino read the sensors and wrote the values out over a serial cable to a computer running Processing (see Software, below). Needing a tethered laptop was architecturally a dead end for an unattended deployment, so this version never got beyond the breadboard stage: it ran at the coop (Dryden, NY) only as a prototype, then moved straight to wireless ZigBee reporting -- see v1.0 for that station's later history and its (now historical) reports.

Like most logging projects this is almost like lego - you choose the sensors you like, connect them to the pins of a microcontroller that the sensor protocol require, and copy and paste all the code that is needed to talk to the individual sensors. I wanted to keep it simple, which means this project requires a host computer that collects the data and sends it out. The host computer can be replaced by an Arduino Ethernet shield or some 802.11 wireless connection, but this would make it slightly more complicated and I would loose the local graphing.

The microcontroller is responsible to setup all the pins to the correct mode (input/output) and to initialize all sensors. The main loop will just read the current value of all sensors and send it out over the serial port. This was relatively easy for me, because I already owned all the sensors and I had figured out the communication before I started this project.

The Arduino here is a 5V device, but several of these sensors are natively 3.3V parts (some 5V-tolerant, some not) -- the BMP085 below runs its logic at 3V3 while sharing a board with 5V sensors, the kind of mismatch that meant relying on a breakout's built-in level shifting or bodging one in externally, sensor by sensor. It worked, but it was messy enough that the next version in this lineage moved to an all-3.3V microcontroller instead -- see the Arduino Fio in v1.0.

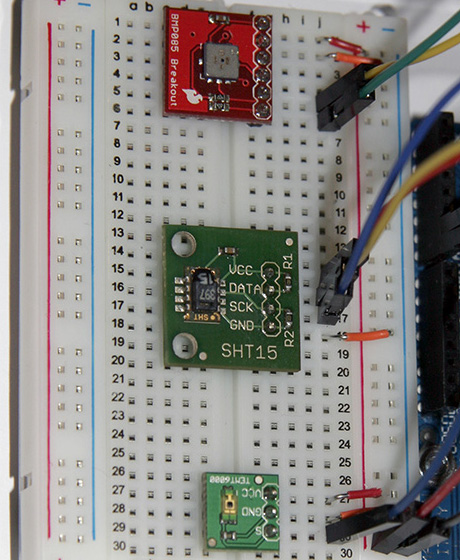

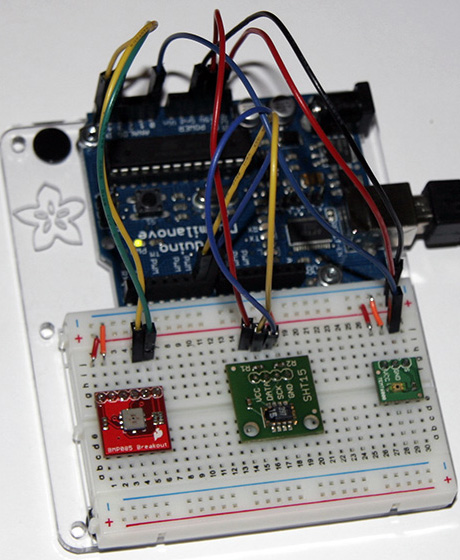

The sensors are connected as follows:

Sensor	Sensor Pin	Arduino Pin
SHT15 Humidity and Temperature Sensor	GND	GND
	SCK	DIGITAL 7
	DATA	DIGITAL 6
	VCC	5V
BMP085 Pressure and Temperature Sensor	VCC	3V3
	GND	GND
	EOC
	XCLR
	SCL	ANALOG 5
	SDA	ANALOG 4
TEMT6000 Ambient Light Sensor	VCC	5V
	GND	GND
	S	ANALOG 0

The software has a few independent pieces and each is not very complicated. If a logging service is used, like www.thingspeak.com, only three pieces are necessary:

an Arduino program runs on a microcontroller (Arduino) and talks to all the sensors and reports to the host computer over the serial port
a Processing program runs on the host computer and collects the data from the serial port, graphs each sensor output locally, and sends it to a web logger with an HTML request
a web page calls the different graphs and displays them

All the code is available from github.com/larsi-org/WeatherStation.

The Arduino code is just copied together from my previous projects. There weren't many sensor libraries available yet at the time this was written, which is why all the SHT15/BMP085 communication is written out directly instead of calling a library -- a few years later, SparkFun or Adafruit libraries for these same sensors would have made this much shorter.

/*
 * WeatherStation by Lars Schumann (make.larsi.org)
 *
 * Uses the following senors: SHT15, BMP085, and TEMT6000
 */

#include "Wire.h"

#define PIN_SDA  6
#define PIN_SCL  7

#define I2C_ADDRESS 0x77

const unsigned char oversampling_setting = 3; //oversamplig for measurement
const unsigned char pressure_waittime[4] = { 5, 8, 14, 26 };

//just taken from the BMP085 datasheet
int ac1;
int ac2;
int ac3;
unsigned int ac4;
unsigned int ac5;
unsigned int ac6;
int b1;
int b2;
int mb;
int mc;
int md;

void bmp085_read_temperature_and_pressure(int* temperature, long* pressure) {
  long ut = bmp085_read_ut();
  long up = bmp085_read_up();
  long x1, x2, x3, b3, b5, b6, p;
  unsigned long b4, b7;

  //calculate the temperature
  x1 = ((long)ut - ac6) * ac5 >> 15;
  x2 = ((long) mc << 11) / (x1 + md);
  b5 = x1 + x2;
  *temperature = (b5 + 8) >> 4;

  //calculate the pressure
  b6 = b5 - 4000;
  x1 = (b2 * (b6 * b6 >> 12)) >> 11;
  x2 = ac2 * b6 >> 11;
  x3 = x1 + x2;

  //b3 = (((int32_t) ac1 * 4 + x3)<> 2;

  if (oversampling_setting == 3) b3 = ((int32_t) ac1 * 4 + x3 + 2) << 1;
  if (oversampling_setting == 2) b3 = ((int32_t) ac1 * 4 + x3 + 2);
  if (oversampling_setting == 1) b3 = ((int32_t) ac1 * 4 + x3 + 2) >> 1;
  if (oversampling_setting == 0) b3 = ((int32_t) ac1 * 4 + x3 + 2) >> 2;

  x1 = ac3 * b6 >> 13;
  x2 = (b1 * (b6 * b6 >> 12)) >> 16;
  x3 = ((x1 + x2) + 2) >> 2;
  b4 = (ac4 * (uint32_t) (x3 + 32768)) >> 15;
  b7 = ((uint32_t) up - b3) * (50000 >> oversampling_setting);
  p = b7 < 0x80000000 ? (b7 * 2) / b4 : (b7 / b4) * 2;

  x1 = (p >> 8) * (p >> 8);
  x1 = (x1 * 3038) >> 16;
  x2 = (-7357 * p) >> 16;
  *pressure = p + ((x1 + x2 + 3791) >> 4);
}

unsigned int bmp085_read_ut() {
  write_register(0xf4,0x2e);
  delay(5); //longer than 4.5 ms
  return read_int_register(0xf6);
}

void bmp085_get_cal_data() {
  //Serial.println("Reading Calibration Data");
  ac1 = read_int_register(0xAA);
  //Serial.print("AC1: ");
  //Serial.println(ac1,DEC);
  ac2 = read_int_register(0xAC);
  //Serial.print("AC2: ");
  //Serial.println(ac2,DEC);
  ac3 = read_int_register(0xAE);
  //Serial.print("AC3: ");
  //Serial.println(ac3,DEC);
  ac4 = read_int_register(0xB0);
  //Serial.print("AC4: ");
  //Serial.println(ac4,DEC);
  ac5 = read_int_register(0xB2);
  //Serial.print("AC5: ");
  //Serial.println(ac5,DEC);
  ac6 = read_int_register(0xB4);
  //Serial.print("AC6: ");
  //Serial.println(ac6,DEC);
  b1 = read_int_register(0xB6);
  //Serial.print("B1: ");
  //Serial.println(b1,DEC);
  b2 = read_int_register(0xB8);
  //Serial.print("B2: ");
  //Serial.println(b1,DEC);
  mb = read_int_register(0xBA);
  //Serial.print("MB: ");
  //Serial.println(mb,DEC);
  mc = read_int_register(0xBC);
  //Serial.print("MC: ");
  //Serial.println(mc,DEC);
  md = read_int_register(0xBE);
  //Serial.print("MD: ");
  //Serial.println(md,DEC);
}

long bmp085_read_up() {
  write_register(0xf4,0x34+(oversampling_setting<<6));
  delay(pressure_waittime[oversampling_setting]);

  unsigned char msb, lsb, xlsb;
  Wire.beginTransmission(I2C_ADDRESS);
  Wire.send(0xf6); // register to read
  Wire.endTransmission();

  Wire.requestFrom(I2C_ADDRESS, 3); // read a byte
  while(!Wire.available()) {
    // waiting
  }
  msb = Wire.receive();
  while(!Wire.available()) {
    // waiting
  }
  lsb |= Wire.receive();
  while(!Wire.available()) {
    // waiting
  }
  xlsb |= Wire.receive();
  return (((long)msb<<16) | ((long)lsb<<8) | ((long)xlsb)) >>(8-oversampling_setting);
}

void write_register(unsigned char r, unsigned char v)
{
  Wire.beginTransmission(I2C_ADDRESS);
  Wire.send(r);
  Wire.send(v);
  Wire.endTransmission();
}

char read_register(unsigned char r)
{
  unsigned char v;
  Wire.beginTransmission(I2C_ADDRESS);
  Wire.send(r); // register to read
  Wire.endTransmission();

  Wire.requestFrom(I2C_ADDRESS, 1); // read a byte
  while(!Wire.available()) {
    // waiting
  }
  v = Wire.receive();
  return v;
}

int read_int_register(unsigned char r)
{
  unsigned char msb, lsb;
  Wire.beginTransmission(I2C_ADDRESS);
  Wire.send(r); // register to read
  Wire.endTransmission();

  Wire.requestFrom(I2C_ADDRESS, 2); // read a byte
  while(!Wire.available()) {
    // waiting
  }
  msb = Wire.receive();
  while(!Wire.available()) {
    // waiting
  }
  lsb = Wire.receive();
  return (((int)msb<<8) | ((int)lsb));
}

void resetSHT()
{
  pinMode(PIN_SDA, OUTPUT);
  pinMode(PIN_SCL,  OUTPUT);

  shiftOut(PIN_SDA, PIN_SCL, LSBFIRST, 255);
  shiftOut(PIN_SDA, PIN_SCL, LSBFIRST, 255);

  digitalWrite(PIN_SDA, HIGH);
  for(int i = 0; i < 15; i++) {
    digitalWrite(PIN_SCL, LOW);
    digitalWrite(PIN_SCL, HIGH);
  }
}

//Specific SHT start command
void startSHT()
{
  pinMode(PIN_SCL,  OUTPUT);
  pinMode(PIN_SDA, OUTPUT);
  digitalWrite(PIN_SDA, HIGH);
  digitalWrite(PIN_SCL,  HIGH);
  digitalWrite(PIN_SDA, LOW);
  digitalWrite(PIN_SCL,  LOW);
  digitalWrite(PIN_SCL,  HIGH);
  digitalWrite(PIN_SDA, HIGH);
  digitalWrite(PIN_SCL,  LOW);
}

void writeByteSHT(byte data)
{
  pinMode(PIN_SCL,  OUTPUT);
  pinMode(PIN_SDA, OUTPUT);

  //  digitalWrite(PIN_SDA,LOW);
  shiftOut(PIN_SDA,PIN_SCL, MSBFIRST, data);

  pinMode(PIN_SDA, INPUT);

  //Wait for SHT15 to acknowledge by pulling line low
  while(digitalRead(PIN_SDA) == 1);

  digitalWrite(PIN_SCL, HIGH);
  digitalWrite(PIN_SCL, LOW);  //Falling edge of 9th clock

  //wait for SHT to release line
  while(digitalRead(PIN_SDA) == 0 );

  //wait for SHT to pull data line low to signal measurement completion
  //This can take up to 210ms for 14 bit measurments
  int i = 0;
  while(digitalRead(PIN_SDA) == 1 ) {
    i += 10;
    if (i >= 1000) break;
    delay(10);
  }

  //debug
  //Serial.print("Response time = ");
  //Serial.println(i);
}

//Read 16 bits from the SHT sensor
int readByte16SHT()
{
  int cwt = 0;

  pinMode(PIN_SDA, INPUT);
  pinMode(PIN_SCL,  OUTPUT);

  digitalWrite(PIN_SCL, LOW);

  for(int i = 0; i < 17; i++) {
    if(i != 8) {
      digitalWrite(PIN_SCL, HIGH);
      cwt = cwt << 1 | digitalRead(PIN_SDA);
      digitalWrite(PIN_SCL, LOW);
    }
    else {
      pinMode(PIN_SDA, OUTPUT);
      digitalWrite(PIN_SDA, LOW);
      digitalWrite(PIN_SCL,  HIGH);
      digitalWrite(PIN_SCL,  LOW);
      pinMode(PIN_SDA, INPUT);
    }
  }

  //leave clock high??
  digitalWrite(PIN_SCL, HIGH);

  //Serial.println();
  return cwt;
}

int getTempSHT()
{
  startSHT();
  writeByteSHT(B0000011);
  return readByte16SHT();
}

int getHumidSHT()
{
  startSHT();
  writeByteSHT(B00000101);
  return readByte16SHT();
}

void setup()
{
  Serial.begin(9600); // start serial for output
  //Serial.println("Setting up BMP085");

  pinMode(PIN_SDA, OUTPUT);
  pinMode(PIN_SCL, OUTPUT);

  Wire.begin();
  bmp085_get_cal_data();
  resetSHT();
  delay(2000);
}

void loop()
{
  int temperature = 0;
  long pressure = 0;

  bmp085_read_temperature_and_pressure(&temperature,&pressure);

  float val;

  val = (float)getTempSHT();
  float tempC = -40.0 + 0.01 * val;

  val = (float)getHumidSHT();
  float humid = -4.0 + 0.0405 * val + -0.0000028 * val * val;

  // http://en.wikipedia.org/wiki/Dew_point
  float a = 17.271;
  float b = 237.7;
  float gamma = log(humid / 100) + a / (b / tempC + 1);
  float dewPoint = b / (a / gamma - 1);

  Serial.print(tempC);
  Serial.print(",");
  //Serial.print(temperature / 10, DEC);
  //Serial.print(".");
  //Serial.print(temperature % 10, DEC);
  //Serial.print(",");
  Serial.print(humid);
  Serial.print(",");
  Serial.print(pressure);
  Serial.print(",");
  Serial.print(analogRead(0), DEC); // prints the value OF analog input pin 0
  Serial.print(",");
  Serial.println(dewPoint);
  delay(10000);
}

It writes to the serial port every 10 seconds all the sensor value separated by comma (temperature in °C, relative humidity in %, pressure in Pa, ambient light (0-1023), dew point in °C):

19.53,74.03,97493,2,14.77
19.48,74.09,97503,0,14.74
19.51,74.01,97509,0,14.75
19.51,74.01,97502,1,14.75
19.53,73.98,97495,1,14.76

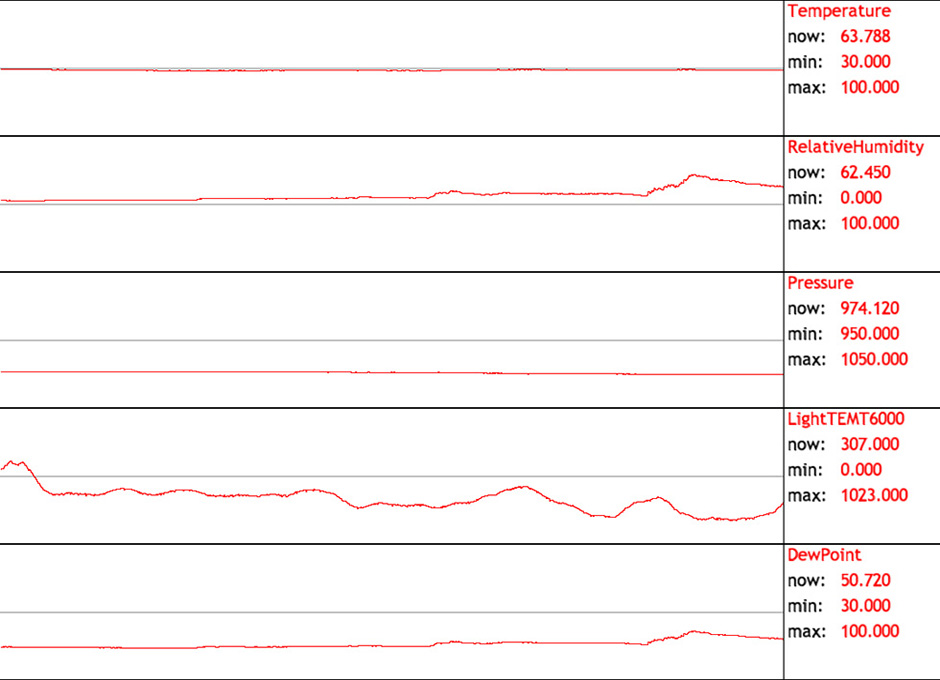

The Processing code uses a modified version of the arduinoscope's channel library:

/*
 * Channel.java by Lars Schumann (make.larsi.org)
 *
 * Draws a float array as a graph
 *
 * It is based on Channel.java by David Konsumer <david.konsumer@gmail.com>
 * but had to be modified
 */

import processing.core.PApplet;
import processing.core.PConstants;

public class Channel implements PConstants
{
  PApplet parent;
  String label;
  float minval;
  float maxval;
  int dimX; // width
  int dimY; // height
  int offY; // y start position
  int COLOR_GRAPH; // color for lines
  int COLOR_CENTER; // color for center line

  private float[] values; // all values in the graph

  public Channel(PApplet parent, String label, float minval, float maxval, int dimX, int dimY, int offY)
  {
    this.parent = parent;
    this.label = label;
    this.minval = minval;
    this.maxval = maxval;
    this.dimX = dimX;
    this.dimY = dimY;
    this.offY = offY;

    // set some defaults
    COLOR_GRAPH = 0xFFFF0000; // red
    COLOR_CENTER = 0xFF999999; // gray

    values = new float[dimX];
    for (int i = 0; i < dimX; i++) values[i] = minval;
  }

  public void draw()
  {
    // draw center line
    parent.stroke(COLOR_CENTER);
    parent.line(0, offY + (dimY/2), dimX, offY + (dimY/2));

    parent.stroke(COLOR_GRAPH);
    int yOld = getY(0);
    for (int x = 1; x < dimX; x++) {
      int yNew = getY(x);
      parent.line(x, yOld, x, yNew);
      yOld = yNew;
    }
  }

  // add a single point
  public void addData(float val)
  {
    for (int i = 0; i < dimX - 1; i++) values[i] = values[i + 1];
    values[dimX - 1] = val;
    if (val < minval) minval = val;
    if (val > maxval) maxval = val;
  }

  // add a single point
  public float getCurrentData()
  {
    return values[dimX - 1];
  }

  private int getY(int index)
  {
    return parent.round(parent.map(values[index], minval, maxval, offY + dimY - 2, offY + 1));
  }
}

The ThingSpeak.pde is the main application. It gets data from the serial port and updates the graphs. Every 5 minutes it send the data to ThingSpeak. It constructs an URL that looks like this (all values in <> need to be replaced by the real values):

http://api.thingspeak.com/update?key=<key>&field1=<value1>&field2=<value2>&field3=<value3>&field4=<value4>&field5=<value5>

Processing does not have any direct way to request an URL from a server, but Processing allows to use any Java code. So, this works:

  String url = ;
  try {
    java.io.BufferedReader reader =
      new java.io.BufferedReader(new java.io.InputStreamReader(new java.net.URL(url).openStream()));
    String line = reader.readLine();
    while (line != null) {
      System.out.println(line);
      line = reader.readLine();
    }
  }
  catch (java.io.IOException e) {
    e.printStackTrace();
  }

The complete code is here (you have to adjust your ThingSpeak update key and the port number of your serial connection):

/*
 * ThingSpeak.pde by Lars Schumann (make.larsi.org)
 *
 * Collects weather data from an Arduino and
 * sends the data to ThingSpeak every 5 minutes.
 */

import processing.serial.*;

// Logging server
String SERVER   = "http://api.thingspeak.com/update?key=0000000000000000";

// Station channels
String labels[] = { "Temperature", "RelativeHumidity", "Pressure", "LightTEMT6000", "DewPoint" };
String fields[] = {      "field1",           "field2",   "field3",        "field4",   "field5" };
float  mins[]   = {            30,                  0,        950,               0,         30 };
float  maxs[]   = {           100,                100,       1050,            1023,        100 };
float  m[]      = {           1.8,                  1,       0.01,               1,        1.8 };
float  n[]      = {            32,                  0,          0,               0,         32 };

Channel channels[] = new Channel[labels.length];

Serial port;

int LINE_FEED=10;

// setup vals from serial
float[] vals = new float[labels.length];
long currentID = 0;
long lastID    = 2; // skip first two values
String lastTime = "";

void setup()
{
  size(1080, 800, P2D);
  frameRate(1);
  background(0);

  // set these up under tools/create font, if they are not setup.
  textFont(loadFont("TrebuchetMS-20.vlw"));

  int dimX = width - 180; // 180 margin for text
  int dimY = height / labels.length;

  for (int i = 0; i < labels.length; i++)
    channels[i] = new Channel(this, labels[i], mins[i], maxs[i], dimX, dimY, dimY * i);

  println("Available serial ports:");
  println(Serial.list());

  port = new Serial(this, Serial.list()[1], 9600);

  // clear and wait for linefeed
  port.clear();
  port.bufferUntil(LINE_FEED);
}

void draw()
{
  background(0xFFFFFFFF); // white

  // update channels
  if (currentID > lastID) {
    for (int i = 0; i < labels.length; i++) channels[i].addData(m[i] * vals[i] + n[i]);
    lastID = currentID;
  }

  // al the same
  int dimX = channels[0].dimX;
  int dimY = channels[0].dimY;

  // draw channels
  for (int i = 0; i < labels.length; i++) {
    int offY = channels[i].offY;

    // draw lines
    stroke(0xFF000000); // black
    line(0, offY, width, offY);
    line(0, offY + dimY - 1, width, offY + dimY - 1);

    channels[i].draw();

    // add labels
    fill(0xFFFF0000); // red
    text(channels[i].label,            dimX +  5, offY +  20);
    text(channels[i].getCurrentData(), dimX + 60, offY +  50);
    text(channels[i].minval,           dimX + 60, offY +  80);
    text(channels[i].maxval,           dimX + 60, offY + 110);
    fill(0xFF000000); // black
    text("now:", dimX + 5, offY + 50);
    text("min:", dimX + 5, offY + 80);
    text("max:", dimX + 5, offY + 110);
  }

  // draw text seperator, based on first scope
  stroke(0xFF000000); // black
  line(0,         0, 0,         height);
  line(dimX,      0, dimX,      height);
  line(width - 1, 0, width - 1, height);
}

// handle serial data
void serialEvent(Serial p)
{
  String data = trim(p.readStringUntil(LINE_FEED));
  if (data != null) {
    String[] data_split = split(data, ',');
    for (int i = 0; i < labels.length; i++) vals[i] = float(data_split[i]);

    DateFormat dateFormat = new SimpleDateFormat("yyyy-MM-dd");
    java.util.Date date = new java.util.Date();
    int m = 5 * (date.getMinutes() / 5);
    int h = date.getHours();
    String currentTime = dateFormat.format(date) + " " + twoDigits(h) +  ":" + twoDigits(m) + ":00";
    String url = SERVER;
    if (!currentTime.equals(lastTime)) {
      lastTime = currentTime;
      for (int i = 0; i < labels.length; i++) url += "&" + fields[i] + "=" + vals[i];
      try {
        java.io.BufferedReader reader = new java.io.BufferedReader(new java.io.InputStreamReader(new java.net.URL(url).openStream()));
        String line = reader.readLine();
        while (line != null) {
          System.out.println(line);
          line = reader.readLine();
        }
      }
      catch (java.io.IOException e) {
        e.printStackTrace();
      }
    }
  }
  currentID++;
}

String twoDigits(int v)
{
  return "" + (v < 10 ? "0" : "") + v;
}

This is an example of the graphical output:

ThingSpeak makes it easy to access your own data. Here is just an example, but much better graphs are possible:

<html>
<head>
<title>Weather Condition</title>
</head>

<body>
<h1>Weather Condition <?php print(date('m/d/Y')); ?></h1>
<table width="100%">
  <tr>
    <td><div align="center"><iframe width="480" height="250" style="border: 1px solid #cccccc;" src="https://thingspeak.com/channels/346/charts/1?timescale=10"></iframe></div></td>
    <td><div align="center"><iframe width="480" height="250" style="border: 1px solid #cccccc;" src="https://thingspeak.com/channels/346/charts/2?timescale=10"></iframe></div></td>
  </tr>
  <tr>
    <td><div align="center"><iframe width="480" height="250" style="border: 1px solid #cccccc;" src="https://thingspeak.com/channels/346/charts/3?timescale=10"></iframe></div></td>
    <td><div align="center"><iframe width="480" height="250" style="border: 1px solid #cccccc;" src="https://thingspeak.com/channels/346/charts/4?timescale=10"></iframe></div></td>
  </tr>
  <tr>
    <td><div align="center"><iframe width="480" height="250" style="border: 1px solid #cccccc;" src="https://thingspeak.com/channels/346/charts/5?timescale=10"></iframe></div></td>
    <td>&nbsp;</td>
  </tr>
</table>
</body>
</html>

Weather Station

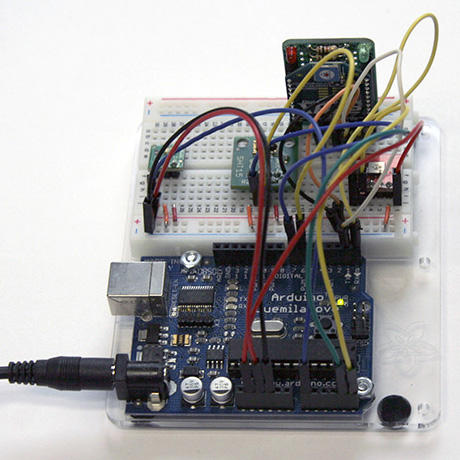

Hardware

Software

Arduino

Processing

Show the weather condition
